Home > Shop > Boards > ALIX 2-3 board (3E/1M, 500MHz / 256MB)

ALIX 2-3 board (3E/1M, 500MHz / 256MB)

Sold out

By special order

Availability

We don't keep this item on hand. Please contact us for an estimate of delivery time.

Information

Product Code HW-AX23-M-500
Category
Tags
, , , ,
Includes
Board

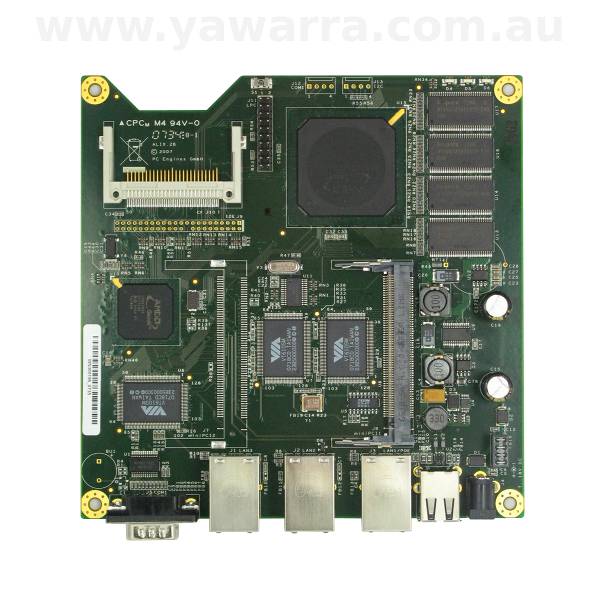

ALIX 2-3 board top view
Notes
  • In order to comply with Australian emissions regulations you will need to enclose this board in a metal case

Designed for embedded use, the ALIX 2-3 board is perfect for specialist projects requiring a small, low power usage, reliable single board computer (SBC). Capable of running a variety of software, it’s the ideal platform on which to base your project.

Along with a 500MHz processor and 256MB of RAM, this board includes two USB 2.0 ports.

The ALIX 2-3 board is ready for you to add your choice of case, storage options, power supply and expansion cards. Please note that in order to comply with Australian emissions regulations you will need to enclose this board in a metal case.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM
Storage

Compact Flash card or Microdrive
Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant). Uses about 3 to 5W at 12V DC (excluding miniPCI cards)
Connectivity

3 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot (card not included), 1 serial (RS232) port (console), 2 USB 2.0 ports
Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface; real-time clock (RTC) battery
Size

153W x 160L x 21H (mm)
Weight

156g
Manufacturer

PC Engines
Model

ALIX.2D-13
Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);
