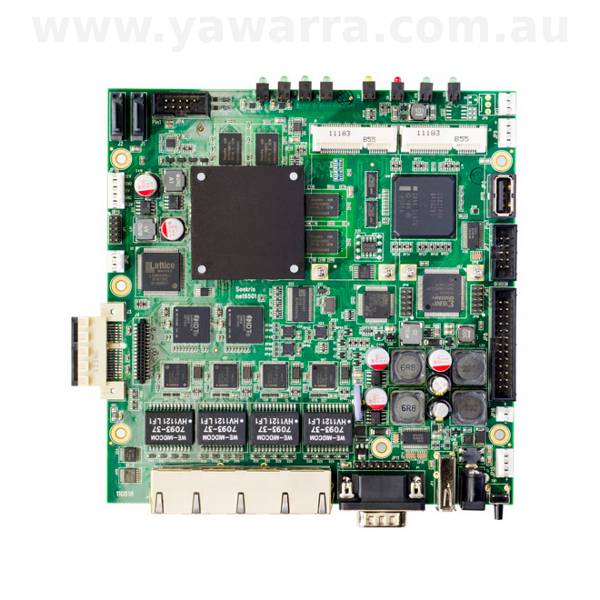

net6501 board (1.6GHz/2GB)

Price

All prices are in AUD and include GST.

Options

Base price: $1,150.00

Discontinued

Availability

This product has been discontinued. We apologise for any inconvenience. Please contact us if you have any queries.

Information

Product Code HW-NT65-M-1600
Category
Tags
, , ,
Includes
Board
net6501 board 1.6GHz 2GB
Notes
  • This board will need to be housed in a suitable metal enclosure, in order to comply with ACMA emissions regulations

Compact and energy-efficient, the net6501 is silent, fanless and built to last.

Designed for use as a firewall, VPN router, internet gateway or application server, the net6501 also has the power and flexibility to function in any capacity as a dedicated network appliance, and is NBN-ready.

The net6501 combines a powerful 1.6GHz Intel ATOM CPU with four Gigabit ethernet ports and 2GB of RAM.

You can add mSATA, 2.5″ SATA and USB flash drives for storage, plus MiniPCI-Express cards and/or low-power standard PCI-Express cards, for even greater functionality.

The net6501 board is ready for you to add your choice of case, storage options, power supply and expansion cards.

Performance

1.6 GHz Intel Atom E6xx series processor with EG20T companion chip and 2048 Mbyte DDR2-SDRAM, soldered on board
Storage

2x mSATA hard drives or solid state drives (SSDs); 2x 2.5" SATA (3 Gbit) hard drives or solid state drives (SSDs); internal USB drive; 8Mbit BIOS/BOOT Flash
Connectivity

4x Intel 82574IT Gigabit Ethernet ports, Auto-MDIX RJ-45, protected to 700W/40A Surge, supports 802.1 VLAN tagging; 1 external serial port (RS232/DB9), 1 internal 10-pin header
USB

Internal Low Profile USB socket, bootable; USB 2.0 interface, 2x internal, 1x external port, bootable;
Expansion

1 full Mini-PCI Express shared with mSATA socket; 1 USB-only Mini-PCI Express shared with mSATA socket; 1x PCI Express slot, right angle
Interface

Power LED, Disk LED, Error LED, Status LED, Network LEDs; 16 bit general purpose I/O; 24 pins header, connected to FPGA; real-time clock (RTC)
Power

6-25V DC external power supply, max 30W, protected with TVS; option for 5V supply using internal connector
Power consumption

8 – 10W (without hard drive)
Operating temperature

0 – 60°C
Monitoring

Temperature and voltage monitor; fan controller (optional fan not included); light management microcontroller; NiMH battery backup connector with charge and monitoring
Size

160W x 161D x 18H (mm)
Weight

210g
Manufacturer

Soekris Engineering
Model

net6501-70
Compliance

C-tick labelled for use in Australia; RoHS-5 compliant;
