Dual rack mount ALIX 2-3

Sold out

By special order

Availability

We don't keep this item on hand. Please contact us for an estimate of delivery time.

Information

Product Code HW-AX23-R250
Category
Tags
, , , , , , , ,
Includes
1RU case, board(s) & cover plate(s), power supplies (1 per board), IEC cables (Australian plug), rack mount fixings

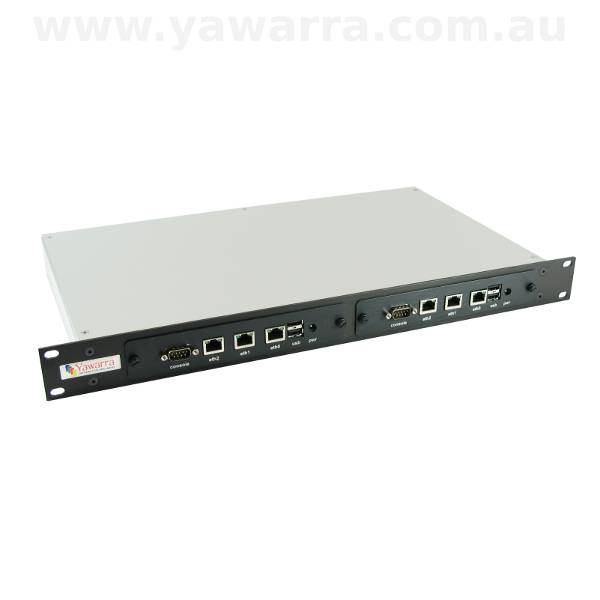

Dual rackmount ALIX 2-3 IEC power

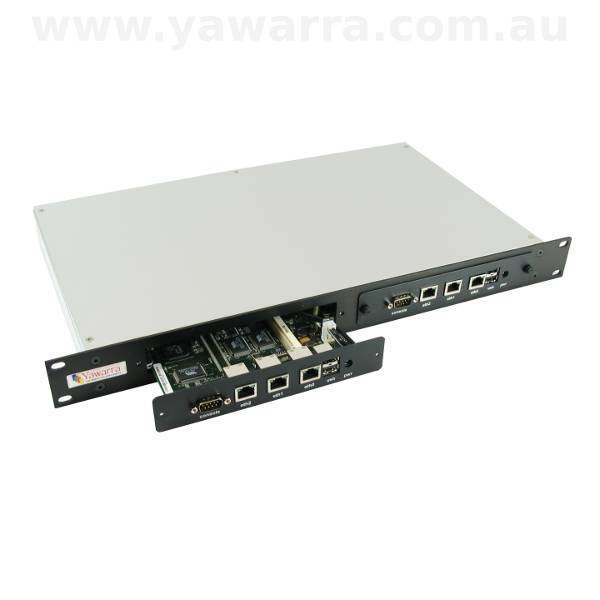

Dual rackmount ALIX 2-3 - board sliding

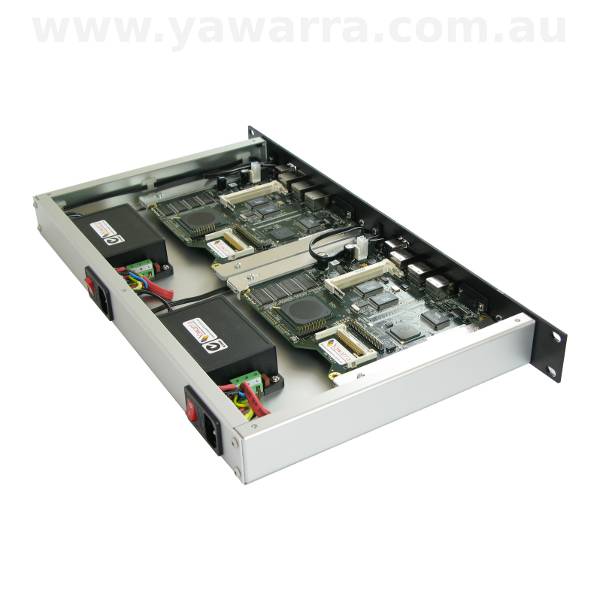

Dual rackmount ALIX 2-3 internal view
Notes
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order

Exclusive to Yawarra, this rack mount server is the ideal way to utilise ALIX 2-3 boards in a server rack environment. Internal power supplies are included, with standard IEC power connectors, ideal for hosting environments.

For server applications in an SME environment, the silent, ultra-reliable and inexpensive ALIX 2-3 boards are an excellent solution. The dual board configuration is ideal for building ultra-reliable redundant systems.

Each board slot has internal slide rails, allowing easy access to the board, and a punched cover plate to suit the ALIX 2-3 board. Empty slots come with a blank cover plate.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM
Storage

Compact Flash card or Microdrive
Power

100-240V AC, 47-63MHz internal switch mode power supply, max 30W; IEC connector, 1.5 A fuse, 12A illuminated switch, 2m IEC cable (Australian plug)
Connectivity

3 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot (card not included), 1 serial (RS232) port (console), 2 USB 2.0 ports (500MHz board only)
Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface; real-time clock (RTC) battery
Size

250mm deep x 1RU high (44mm) x 19" rack-mountable (483mm wide)
Finish

Black anodised aluminium face, clear anodised body, laser etched port labels
Board slots

1 or 2 slide rail kits to suit ALIX 2-3 boards
Model

TSC-AX23-R250; Boards: ALIX.2D-3 / ALIX.2D-13
Manufacturer

PC Engines (board) / Yawarra (case)
Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
