Dual rack mount net5501

Sold out

Discontinued

Availability

This product has been discontinued. We apologise for any inconvenience. Please contact us if you have any queries.

Information

Product Code HW-NT55-R250
Category
Tags
, , , , , , ,
Includes
1RU case, board(s) & cover plate(s), power supplies (1 per board), IEC cables (Australian plug), rack mount fixings

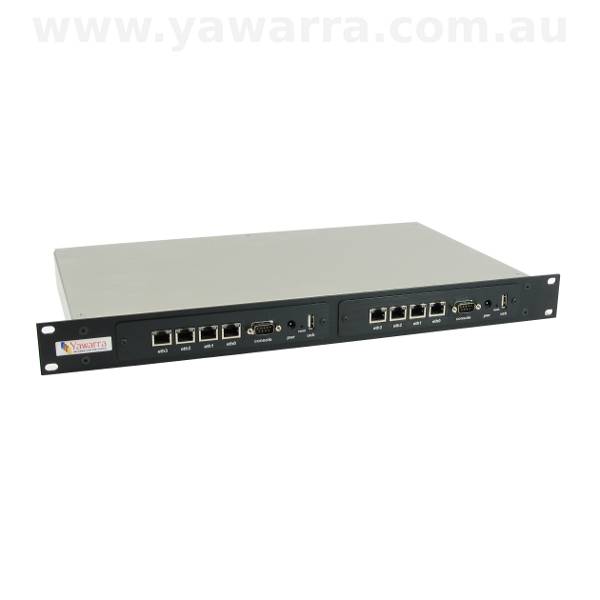

Dual rackmount net5501 front view

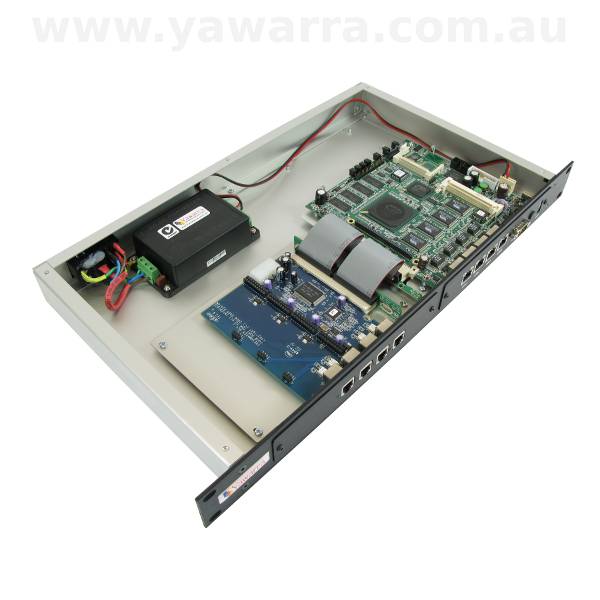

Dual rackmount net5501 internal view

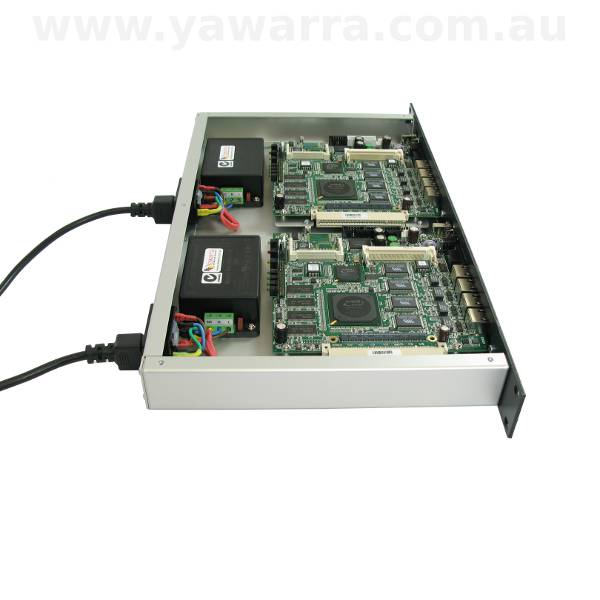

Dual rackmount net5501 side view

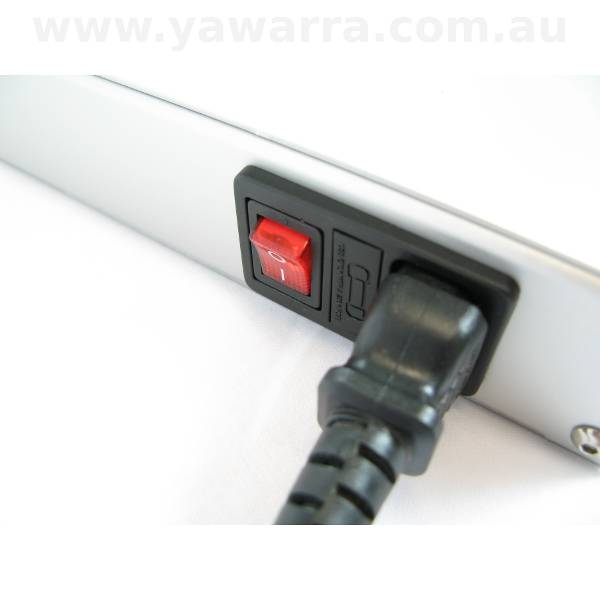

Dual rackmount net5501 IEC plug

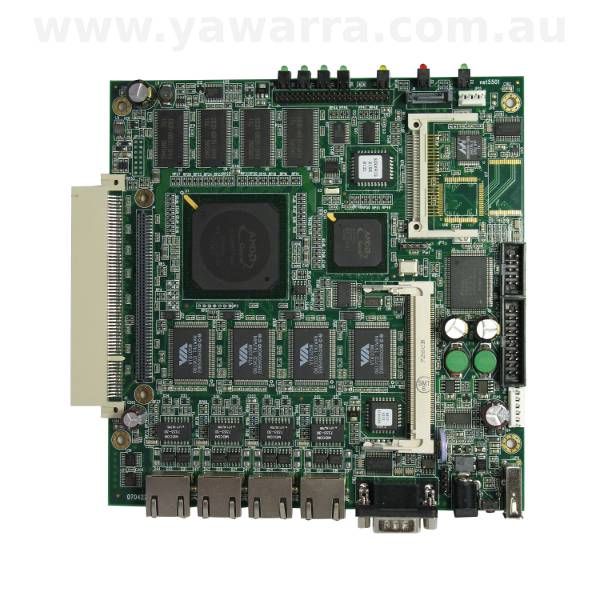

Dual rackmount net5501 board
Notes
  • net5501 boards do not slide out in this rack mount case
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order
  • If you select the A400P VoIP card in the PCI slot, you will also need at least one FXO/FXS module
  • The net5501 can only recognise 134GB of storage space, so if you select the 160GB 2.5" SATA HDD, you will only have access to 134GB of it.

Note: This product has been discontinued. Please check out the net6501 and the APU2 as alternatives to the net5501.

Exclusive to Yawarra, this rack mount server is the ideal way to utilise net5501 boards in a server rack. Internal power supplies are included, with standard IEC power connectors ideal for hosting environments.

With four ethernet ports as standard and a 500MHz CPU with 512 MB of RAM, the net5501 is ideal for use as a firewall, VPN Router, internet gateway or VoIP PBX.

You can add a 2.5″ laptop hard drive, as well as a miniPCI and/or PCI expansion card, allowing the net5501 to serve in an even wider variety of applications.

Each board slot has a punched cover plate to suit the net5501 board. If you choose only one board, the empty slot comes with a blank cover plate that can be easily replaced in future with a mounting kit to accommodate a PCI expansion card.

Performance

500 Mhz AMD Geode LX 800 single chip processor with CS5536 companion chip, 512MB RAM
Storage

Compact Flash card or Microdrive, and/or 2.5" HDD
Power

100-240V AC, 47-63MHz internal switch mode power supply, max 30W; IEC connector, 1.5 A fuse, 12A illuminated switch, 2m IEC cable (Australian plug); real-time clock (RTC) battery
Power consumption

6-8W, 8-11W with HDD, 14-19W with PCI card and HDD
Connectivity

4 ethernet ports (10/100 Mbit, supports 802.1 VLAN tagging), 1 miniPCI slot, 1 PCI slot, 2 serial (RS232) ports, USB 2.0, 2.5" IDE and SATA connectors
Size

250mm deep x 1RU high (44mm) x 19" rack-mountable (483mm wide)
Finish

Black anodised aluminium face, clear anodised body, laser etched port labels
Board slots

1 or 2 mounting kits to suit net5501 boards or PCI expansion cards
Model

net5501-70
Manufacturer

Soekris Engineering (board) / Yawarra (case)
Compliance

C-tick labelled for use in Australia; RoHS-5 compliant;

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
