Dual rack mount net6501

Price

All prices are in AUD and include GST.

Options

Base price: $1,575.00

Discontinued

Availability

This product has been discontinued. We apologise for any inconvenience. Please contact us if you have any queries.

Information

Product Code HW-NT65-R250
Category
Tags
, , , , , ,
Includes
1RU case, board(s) & cover plate(s), power supplies (1 per board), IEC cables (Australian plug), rack mount fixings

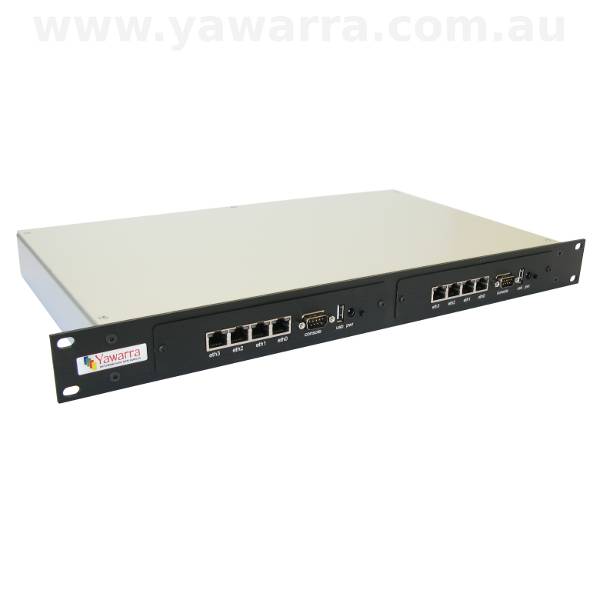

Dual rackmount net6501 front

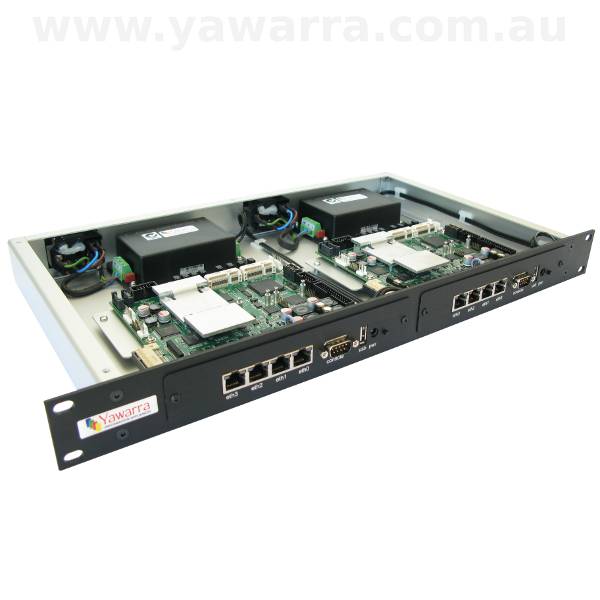

Dual rackmount net6501 internal view

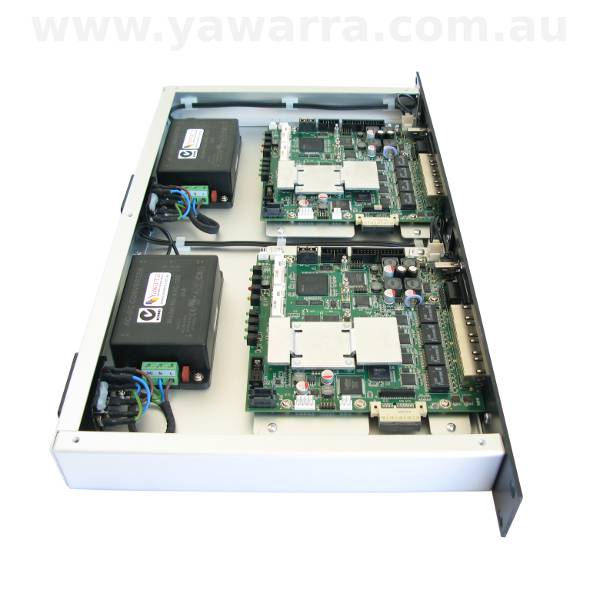

Dual rackmount net6501 side view

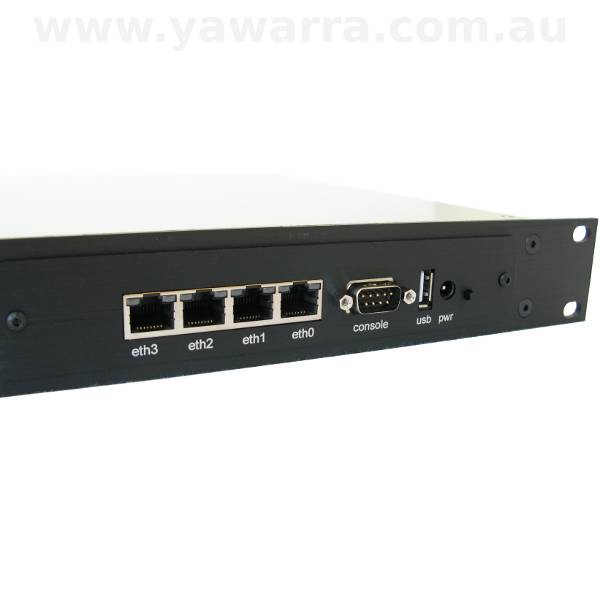

Dual rackmount net6501 ports

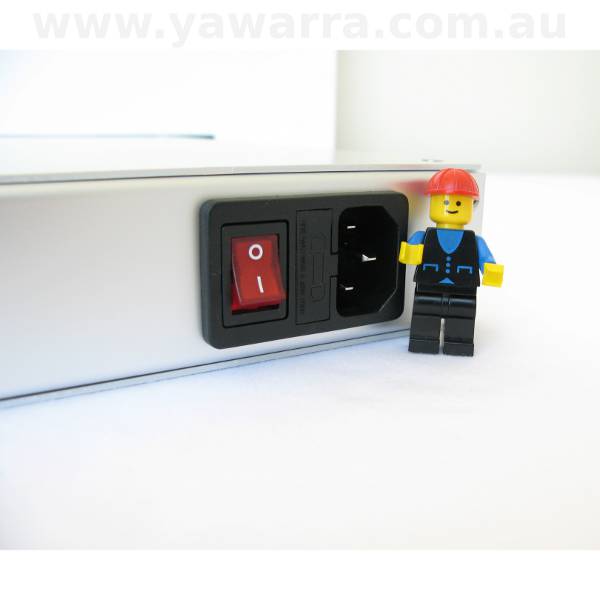

Dual rackmount net6501 IEC plug

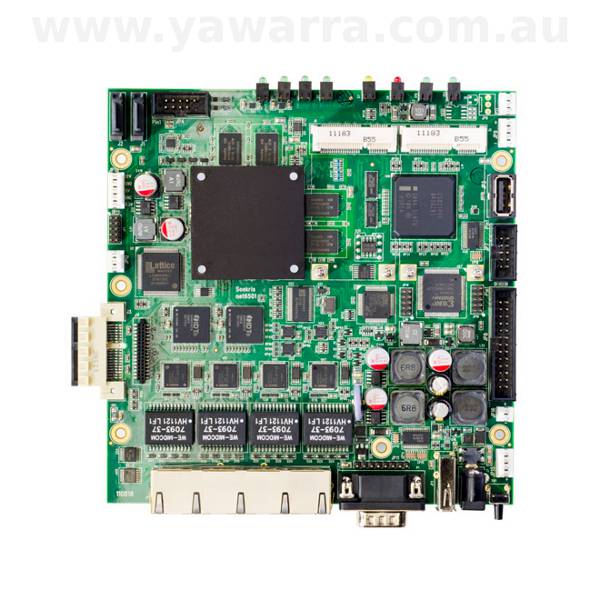

Dual rackmount net6501 board
Notes
  • net6501 boards do not slide out in this rack mount case
  • To have an operating system installed, you will need to include at least one mSATA drive in your order
  • You can only have two SATA devices operating (per board) at the same time. This means that you can use either two mSATA drives, or one mSATA and one standard SATA drive, but not all three at once

Compact and energy-efficient, the dual rackmount net6501 is silent, fanless and built to last.

Exclusive to Yawarra, this dual-board rack mount server is the ideal way to utilise net6501 boards in a server rack.

With four Gigabit ethernet ports as standard, a 1.0GHz or 1.6GHz CPU and up to 2GB of RAM, the net6501 is ideal for use as a firewall, VPN Router, internet gateway or application server, and is NBN-ready.

Internal power supplies are included, with standard IEC power connectors ideal for hosting environments.

You can add mSATA and 2.5″ SATA drives, plus an internal USB flash drive, allowing the rackmount net6501 to serve in an even wider variety of applications.

Each board slot has a punched cover plate to suit the net6501 board. If you choose only one board, the empty slot comes with a blank cover plate that can be easily replaced in future with other options.

Performance

1 GHz Intel Atom E6xx series processor with EG20T companion chip and 1024 Mbyte DDR2-SDRAM, soldered on board — OR — 1.6 GHz Intel Atom E6xx series processor with EG20T companion chip and 2048 Mbyte DDR2-SDRAM, soldered on board
Storage

2x mSATA hard drives or solid state drives (SSDs); 1x 2.5" SATA (3 Gbit) hard drive or solid state drive (SSD); internal USB drive; 8Mbit BIOS/BOOT Flash
Connectivity

4x Intel 82574IT Gigabit Ethernet ports, Auto-MDIX RJ-45, protected to 700W/40A Surge, supports 802.1 VLAN tagging; 1 external serial port (RS232/DB9), 1 internal 10-pin header
USB

Internal Low Profile USB socket, bootable; USB 2.0 interface, 2x internal, 1x external port, bootable
Expansion

1 full Mini-PCI Express shared with mSATA socket; 1 USB-only Mini-PCI Express shared with mSATA socket; 1x PCI Express slot, right angle
Interface

Power LED, Disk LED, Error LED, Status LED, Network LEDs; 16 bit general purpose I/O; 24 pins header, connected to FPGA; real-time clock (RTC)
Power

100-240V AC, 47-63MHz internal switch mode power supply, max 30W; IEC connector, 1.5 A fuse, 12A illuminated switch, 2m IEC cable (Australian plug)
Power consumption

8 – 10W (per board, without hard drive)
Operating temperature

0 – 60°C
Monitoring

Temperature and voltage monitor; fan controller (optional fan not included); light management microcontroller; NiMH battery backup connector with charge and monitoring
Size

250mm deep x 1RU high (44mm) x 19" rack-mountable (483mm wide)
Finish

Black anodised aluminium face, clear anodised body, laser etched port labels
Board slots

1 or 2 mounting kits to suit net6501 boards
Model

Boards: net6501-50 / net6501-70
Manufacturer

Soekris Engineering (board) / Yawarra (case)
Compliance

C-tick labelled for use in Australia; RoHS-5 compliant;

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
