Availability

Unfortunately we've sold out of this item. We should have more stock soon.

Information

Product Code HW-AX3-OUT

Tags

ALIX, ALIX 3, Linux, m0n0wall, pfSense®, Single board computer, Voyage

Includes

Board, case, pole mounting bracket, waterproof ethernet assembly

Notes

To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order

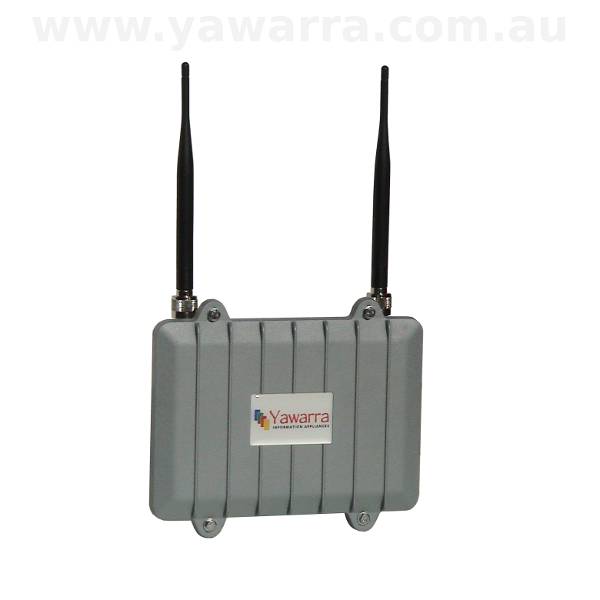

The ALIX 3 Outdoor combines the excellent ALIX 3 single board computer with a fully weatherproof enclosure able to withstand the toughest conditions making it an ideal solution for outdoor or industrial use.

The ALIX 3 Outdoor is the perfect base on which to build your own outdoor access point, point to point link, or mesh network node. Its compact and attractive design allow it to fit in just about anywhere. It comes with pole mounting hardware, and wall mounting hardware can be purchased separately for maximum flexibility.

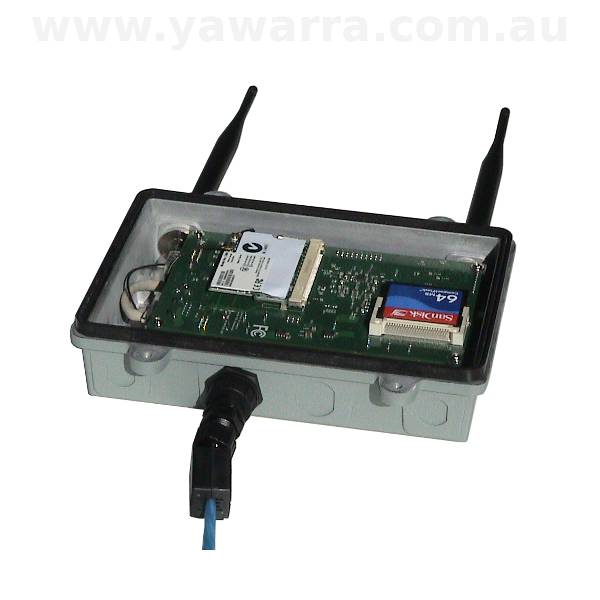

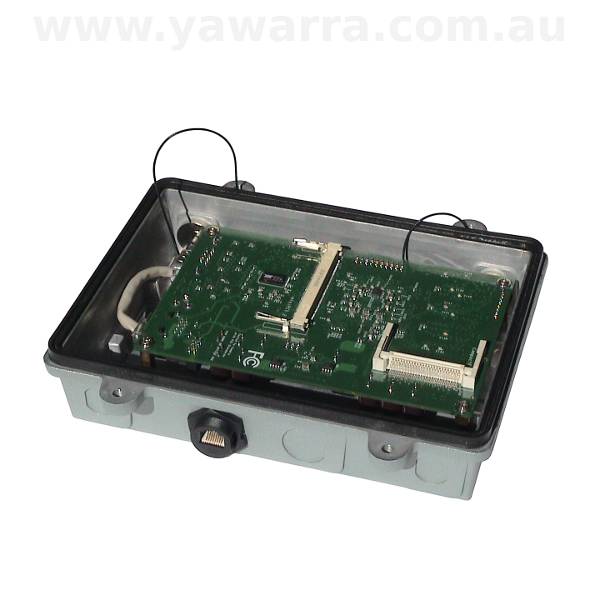

The ALIX 3 Outdoor includes a board and case, ready for you to add your choice of pigtails, antennas, Compact Flash card, operating system, power supply and expansion cards.

Performance	500 MHz AMD Geode LX800 CPU, 256 MB RAM
Storage	Compact Flash card or Microdrive
Power	7-18V DC external power supply; passive Power over Ethernet recommended (not 802.3af compliant). Uses about 3 to 5W at 12V DC (excluding miniPCI cards)
Connectivity	1 ethernet channel (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 2 miniPCI slots (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports (500MHz board only, not accessible)
Interface	Three front panel LEDs, can be controlled through CPU GPIO pins
Case style	1A1E – one antenna punchout, one ethernet punchout2A1E – two antenna punchouts, one ethernet punchout4A2E – four antenna punchouts, two ethernet punchouts

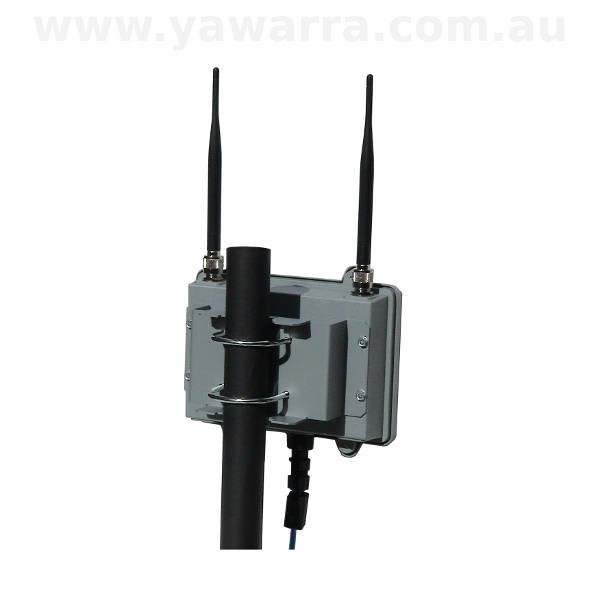

Mounting	Wall or pole (pole mounting bracket included)
Case colours	Matt silver
Size	210W x 180D x 53H (mm)
Weight	1209g
Manufacturer	PC Engines (board) / mini-box (case)
Model	ALIX.3D-2
Compliance	C-tick labelled for use in Australia; RoHS compliant (lead-free);
