Home > Shop > Servers > ALIX 6 (2 ethernet / 1 mPCI / 1 mPCIE )

ALIX 6 (2 ethernet / 1 mPCI / 1 mPCIE )

Price

All prices are in AUD and include GST.

Options

Base price: $335.00

Limited stock

Availability

We have limited stock of this item. Please contact us before ordering in quantity.

Information

Product Code HW-AX6
Category
Tags
, , , , ,
Includes
Board and case

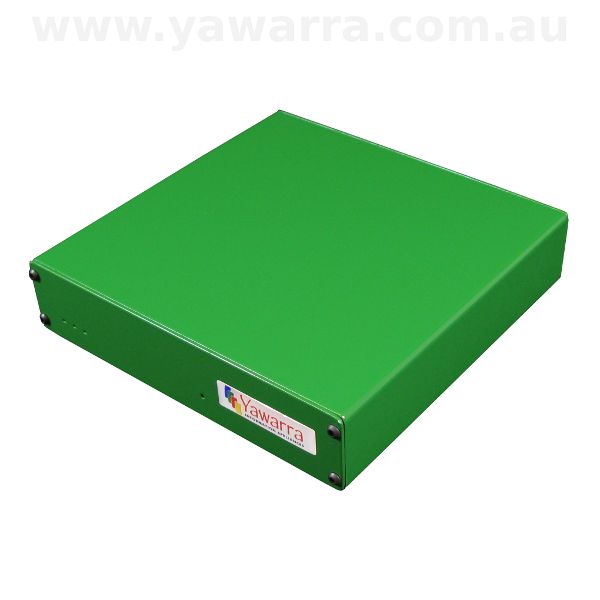

ALIX 6 green front view

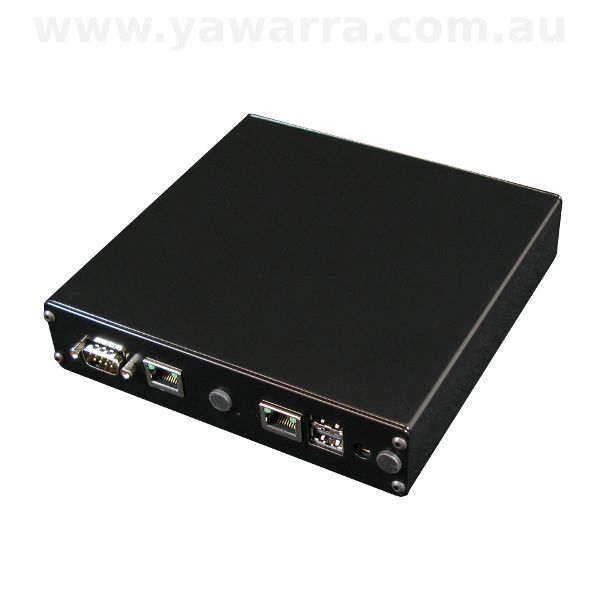

ALIX-6 black rear view

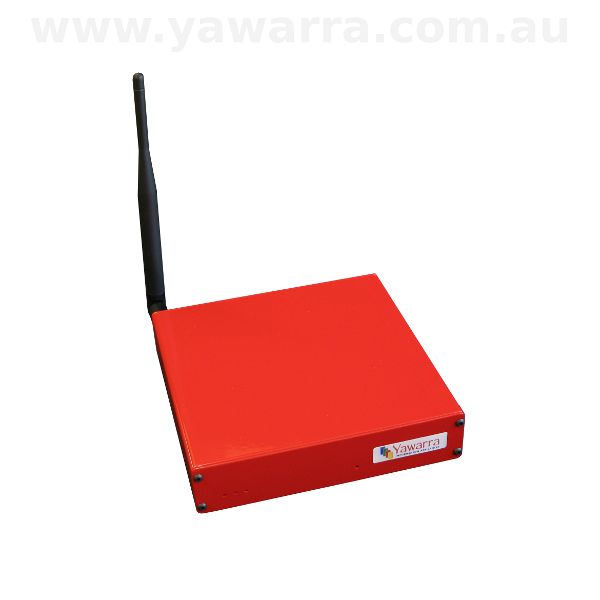

ALIX 6 red with antenna

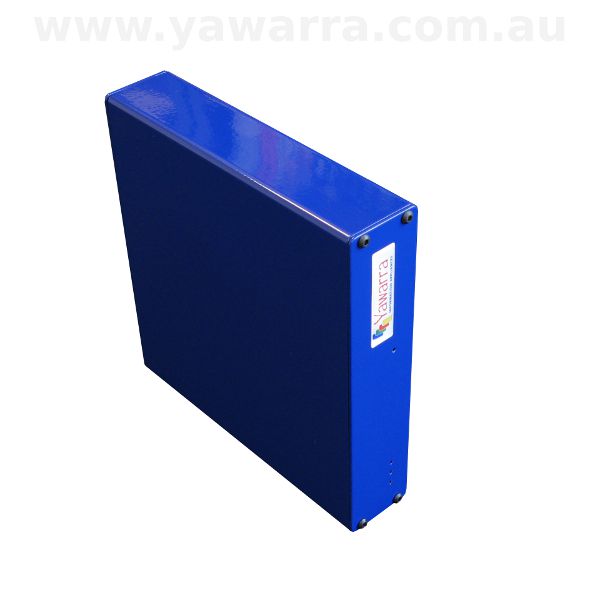

ALIX 6 blue on edge

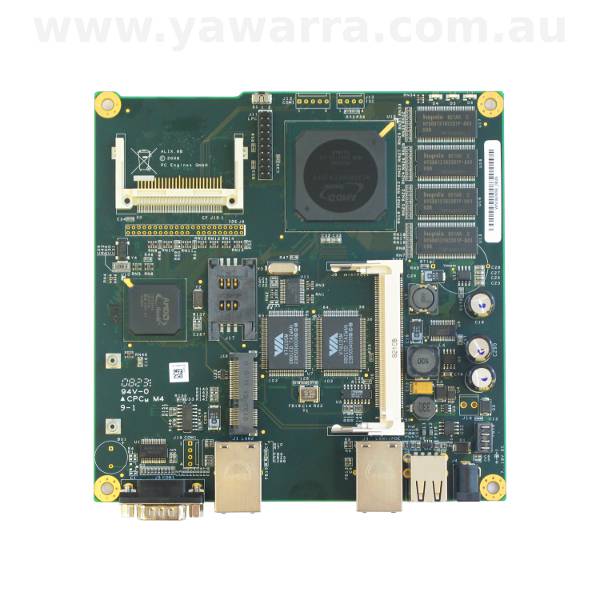

ALIX 6 board

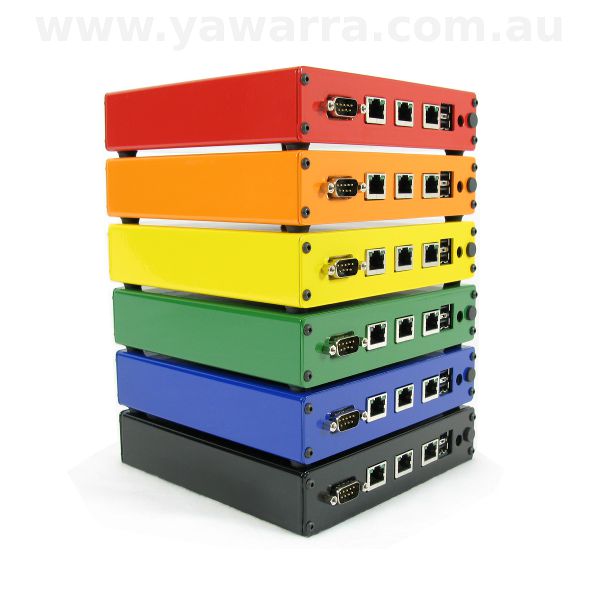

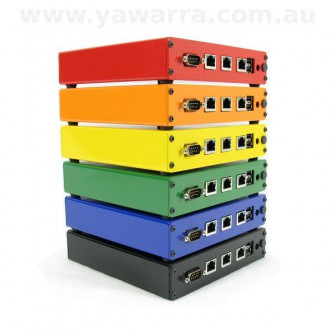

ALIX 6 case colours stack

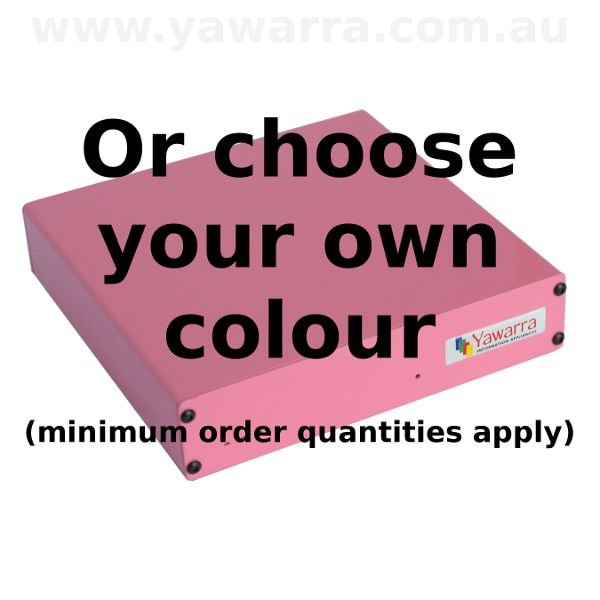

ALIX 6 custom colours (pink)
Notes
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order
  • miniPCI wireless cards do not include a pigtail or antenna

Compact and silent, the ALIX 6 uses very little power, has no moving parts and is ultra-reliable, making it ideal for use as a dedicated network appliance. Available in a stylish case in a great range of colours, the ALIX 6 looks very smart and is equally at home on public display or tucked away in a corner.

The ALIX 6 comes with a miniPCI express slot ideal for adding a 3G wireless modem, such as the Sierra Wireless MC series, and two integrated SIM slots allowing you to have multiple or redundant 3G providers.

The ALIX 6 includes a board and case, ready for you to add your choice of Compact Flash card, operating system, expansion cards, pigtails, antennas, and power supply.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM
Storage

Compact Flash card or Microdrive
Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant)
Power consumption

Uses about 3 to 5W at 12V DC (excluding miniPCI cards)
Connectivity

2 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot / 1 miniPCI Express slot (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports, dual SIM card slots
Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface (requires soldering)
Size

158W x 163D x 38H (mm)
Weight

540g
Case colours

Powdercoated black, red, blue, green, orange, yellow
Manufacturer

PC Engines (board) / Yawarra (case)
Model

ALIX.6F-2
Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
